What we created

Lolab created an innovative process and recipe to fireproof fibre materials such as paper, wood pulp and even fabrics.

This provides a genuine alternative to create non toxic fireproof board materials and improving material properties such as stiffness and strength.

Cardboard panel treated with Lolab mixture at 900°C for 30 minutes

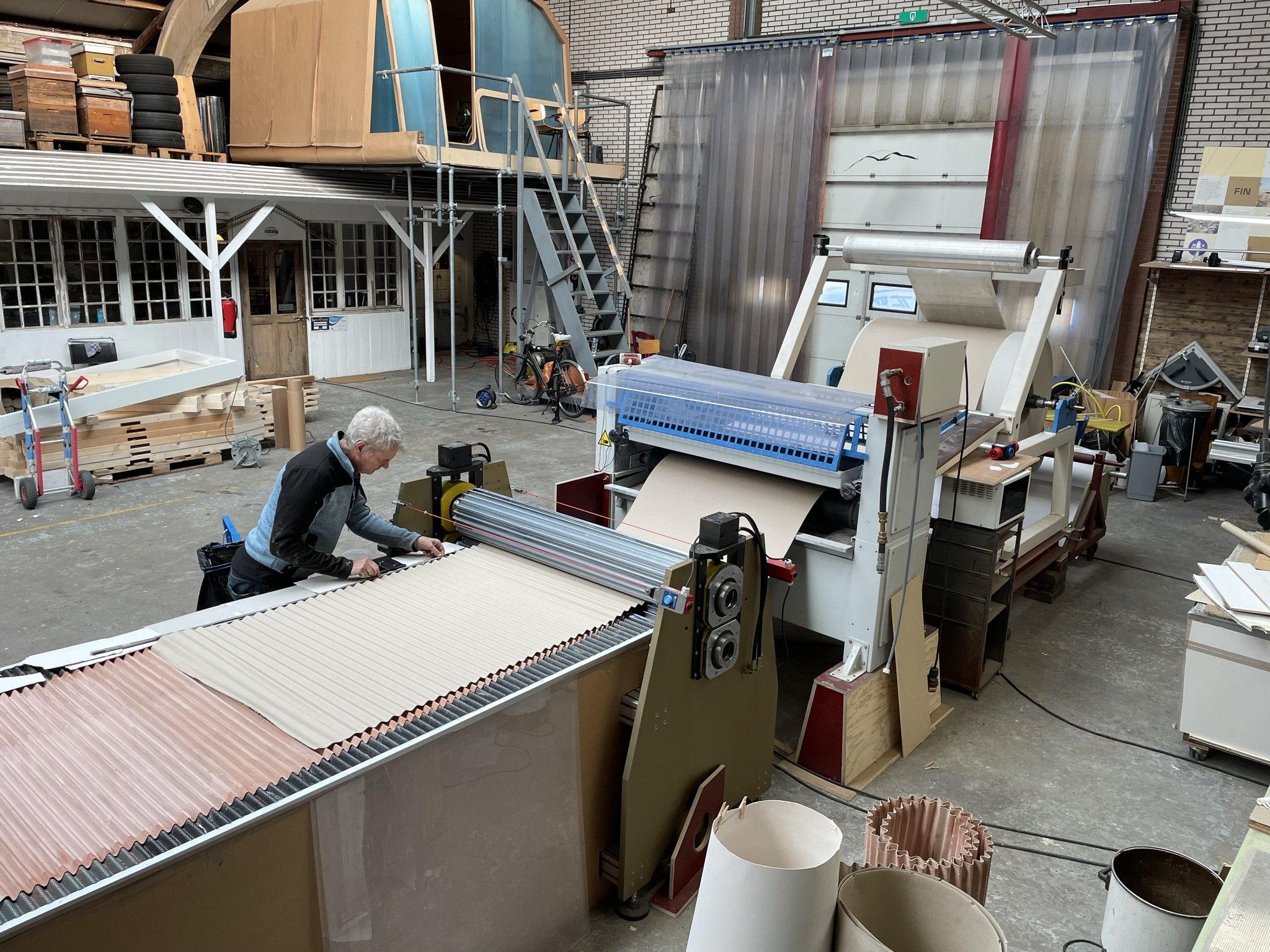

Lode working on the vacuum system

Formed and impregnated greyboard

Lolab lightweight 20mm fireproof cellulose panel

Prototype of adhesive applicator


POTENTIAL PRODUCTS

FIRE RESISTANT LAMINATED CONSTRUCTION PANEL

Product Features

  • Fire-resistant laminate for wood panels such as LVL and birch plywood

  • Fully glued on the master panels without seams, resulting in paint-ready, completely flat walls

  • Biodegradable and environmentally friendly, containing no harmful chemicals

Construction Potential

  • Aimed at LVL and birch plywood constructions

  • Fire safety is enhanced by preventing fire spread within wall and roof cavities.

  • Saving on labor costs and eliminating the need for additional drywall installation

    • Suitable for regular handling and (flatpack) construction logistics

    • Not brittle and crack-sensitive like plasterboard and gypsum fiberboard

    • 25% lighter than plasterboard and 50% lighter than gypsum fiberboard, reducing transport costs

    • No (wet) labor-intensive post-processing, saving on labor costs and eliminating the need for additional drywall installation

Fire Resistance

  • Fire class B: No flash-over within 20 minutes in the Room Corner Test

  • No ignition in the Single Burning Item test

  • The number of 1,3 mm layers determine the fire resistance: 30 min / 60min / 120 minutes

  • Expands slightly when exposed to fire, enhancing fire resistance

Machine processing

Milling

Sawing

Drilling

Industrial Manufacturing

Standard size Wooden panels

Natural Fiber on 2500mm x 1850m reel

Clay and the Lolab process

For more information on the biodegradable and environmentally friendly Fire Resistant Laminated Construction Panels contact:

Thijs Zwakman

thijs@lolab.nl

+31 (0)6 14 30 91 02
